第六講:針對B10型LED燈泡設計的高效率、超緊湊驅動器

發布時間:2012-08-15 來源:電子元件技術網

導言:本文介紹了一款新的參考設計(DER-297),是針對B10型LED燈泡設計的高效率、超緊湊驅動器。該電源基于PI的LinkSwitch-PL系列非隔離單級LED驅動器IC設計而成,特別適用于高壓LED應用, DER-297可提供LED所要求的高壓輸出,并通過降低驅動電感和輸出二極管內的電流所造成的功耗來提升整體系統效率。該設計總共只用了20個元件,體積極小,成本效益非常顯著。對于一個4.3 W的LED驅動器,該設計在115 VAC下效率可達到87%(對于2.9 W輸出效率可達86%),同時功率因數超過0.9,這樣可輕松滿足EN61000-3-2 Class C限值要求并使總諧波失真(THD)低于20%。

1.簡介

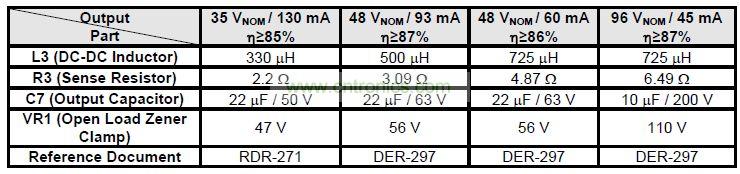

本文介紹采用PI LinkSwitch-PL系列非隔離單級LED驅動器IC設計而成的針對B10型LED燈泡設計的高效率、超緊湊驅動器——DER-297。它的單一恒流輸出功率為4.5W,可輕松配置從35V到100V的輸出電壓,如下表所示。

這款驅動器的設計目標是高性能和小型化,使得驅動器能滿足B10型燈泡并最大限度提高效率。

詳細閱讀:
針對B10型LED燈泡設計的高效率、超緊湊驅動器(DER-297)

相關閱讀:
第一講:100W高可靠性LED球泡燈驅動電源設計
第二講:150W高可靠性LED路燈驅動電源設計
第三講:30W高可靠性LED T8燈管驅動電源設計
第四講:能效高達85%的15W筒燈驅動電源設計
第五講:5W-16W TRIAC調光LED照明驅動解決方案

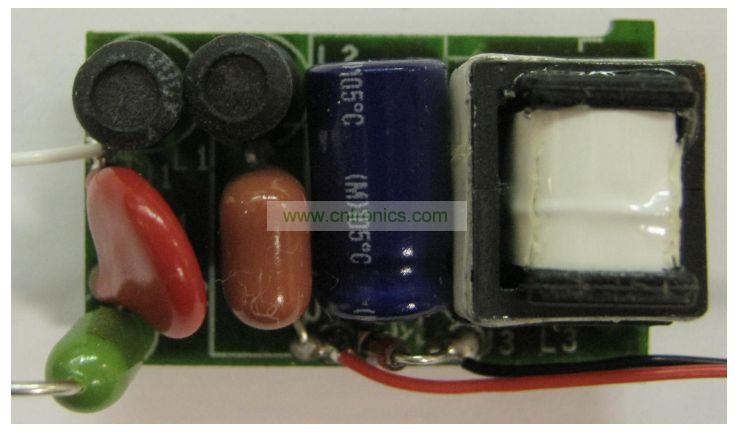

Figure 1 – Size of a Populated Circuit Board. Top Side

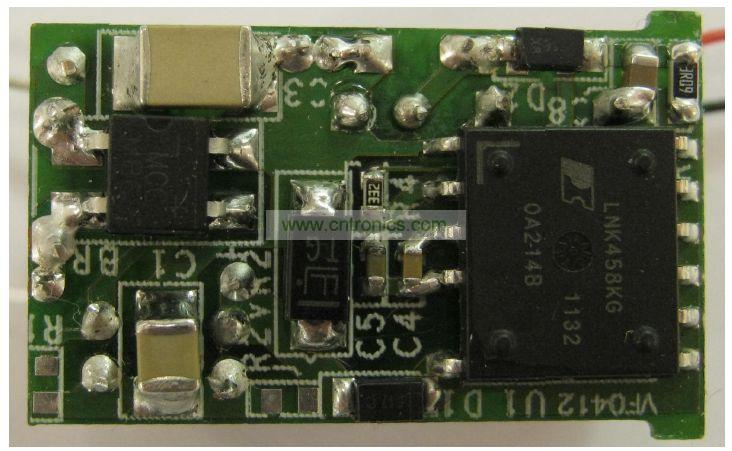

Figure 2 – Size of a Populated Circuit Board. Bottom Side

關鍵特性:

1. Single-stage power factor corrected and accurate constant current (CC) output
2.Low cost, low component count and small PCB footprint solution
3.Highly energy efficient, >87% at 115 VAC input for 48 V and >87% for 96 V output
4.Superior performance and end user experience
   ·Fast start-up time (<300 ms) – no perceptible delay
5.Integrated protection and reliability features
  ·Single shot no-load protection / output short-circuit protected with auto-recovery
  ·Auto-recovering thermal shutdown with large hysteresis protects both components and PCB
  ·No damage during brown-out conditions
6.PF >0.95 at 115 VAC
7.%A THD <20% at 115 VAC
8.Meets IEC ring wave, differential line surge and EN55015 conducted EMI

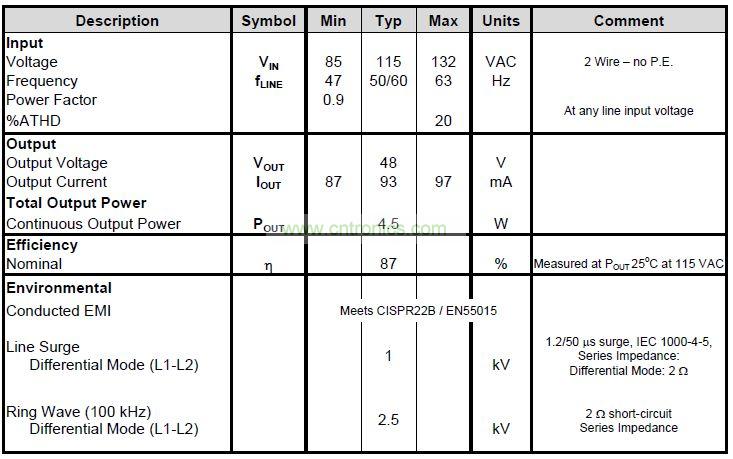

電源規格

1. 48 V, 93 mA Version

電路原理圖

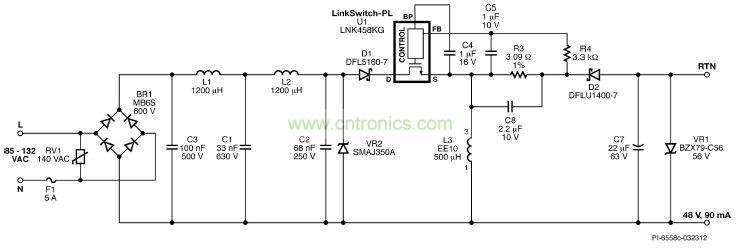

Figure 3 – 48 V, 93 mA Schematic.

欲了解更多詳細內容請下載:
針對B10型LED燈泡設計的高效率、超緊湊驅動器(DER-297
